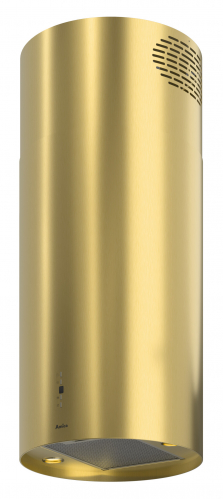

OWS4341OZ
OWS4341OZ
Specification
FEATURES
| Accessories - | Air flaps Yes | Delay Yes |
| Filter saturation indicator Yes | Maximum time of delay 15 ' | Montage template Yes |
| Outlet diameter reductor Yes | Panel - language version Pictograms | Protection class of electric shock I_Class |
| Low noise level Yes | Type of work Extraction/Recirculation |
Equipment
| Illuminated push buttons Yes | Number of carbon filters 1 | Number of grease filters 1 |
| Number of layers in grease filter 5 | Number of speed 3 | Type of control Soft touch |
| Type of display LED | Type of grease filters Aluminium frame | Carbon filter type FWK 245 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 275 m3/h | Air flow at 2 speed - extractor by EN 61591 501 m3/h | |||||||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 664 m3/h | Air Flow at Intensive or Boost Setting [If Available] 664 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 501 m3/h | |||||||||||||||||||||||||||||||||||||
| Air Flow at Minimum Speed in Normal Use 275 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 327.2 m3/h | Air Pressure at Best Efficiency Point P BEP 419 Pa | |||||||||||||||||||||||||||||||||||||
| Annual energy consumption 46.2 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 423 lux | Control panel on one side/two sides One side | |||||||||||||||||||||||||||||||||||||
| Dimensions of grease filter 283.5x212.5mm | Display color Red | Distance to electric hob 45 cm | |||||||||||||||||||||||||||||||||||||
| Distance to gas hob 65 cm | Electric Power Input at Best Efficiency Point - W BEP 125.4 W | Energy Efficiency Index - EEI hood 52.4 | |||||||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency - FDE hood 30.4 | Fluid Dynamic Efficiency Class A | Grease Filtering Efficiency - GFE hood 80 % | |||||||||||||||||||||||||||||||||||||
| Grease Filtering Efficiency Class C | Grease Filtering Efficiency Class C | Gross volume 0.537 m³ | Intensive or Boost Setting Auto-Off time 8 ' | Internal/external motor Internal | Main lighting colour temperature [K] 3000 | Lighting Efficiency - LE hood 61 lux/W | Lighting Efficiency - LE hood 61 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Lighting Efficiency Class A | Limitation of Exhaust Air - t limit 8 ' | Maximum Possible Air Flow 501 m3/h | Motor unit rated power 210 W | Motor type/model SM650 | Net depth 40 cm | Net height max 120 cm | Net height min 87 cm | Net weight 24.65 kg | Net width 40 cm | Noise level at 1 speed - extractor by EN 60704-2-13 44 dB | Noise level at 2 speed - extractor by EN 60704-2-13 57 dB | Noise level at 3 speed - extractor by EN 60704-2-13 64 dB | Nominal Power of the Lighting System - W L 6.9 W | Number of motor units 1 | Number units of main lighting 4 | Air exhaust diameter 15 cm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.4 W | Power cabel length 200 cm | Power rating 217 W | Power Supply Voltage 220-240V | Power unit of main lighting 1.75 W | Noise level on TURBO mode 64 dB | Sound Power Emission at Intensive or Boost Setting [if available] 64 dB | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 57 dB | Sound Power Emission at Minimum Speed Available in Normal Use 44 dB | Noise level 57 dB | Time Increase Factor - f 0.9 | Type of main lighting LED - other |
